TFE-3.5-E

Category:

Part Number:

Condition:

Manufacturer:

TLD

Lead Time:

Call for Pricing

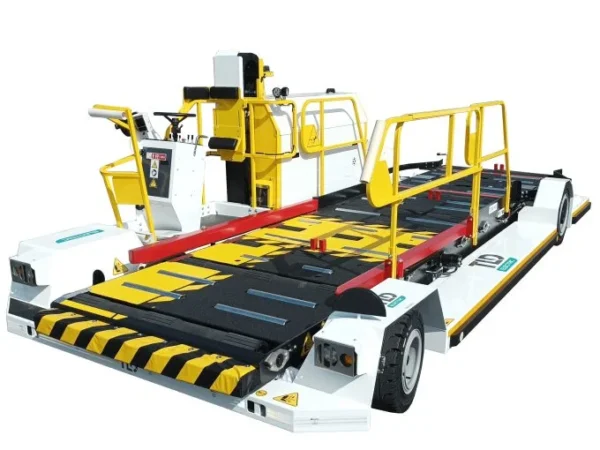

The TFE-3.5 is a single platform container loader & transporter with capability to handle all lower lobes containers with up to 3500 kg (7,700 lbs) maximum payload it shuttles between the dollies train, located outside the controlled evolution zone, and the aircraft. Designed to efficiently load and unload the A319-320/321 the TFE-3.5 is also compatible with lower lobes of all commercial wide body aircrafts with doorsill up to 3500 mm (139”). With its lifting platform and its maximum speed of 25 km/h, it can combine loading and long-distance transport operations. The TFE-3.5 offers one-man operation, versatility of use, quick and economical solution for freight transport & loading with maximum operator and aircraft safety thanks to ASD system (Aircraft Safe Docking). Commonality of TLD parts and latest technologies onboard provide simplicity of use, reliability and the best maintainability.

  • Single-platform container loader and transporter designed for efficient cargo handling operations.
  • Maximum payload capacity up to 3,500 kg (7,700 lbs) for lower lobe container handling.
  • Functions as a shuttle unit between dollies train and aircraft, operating outside the controlled evolution zone.
  • Designed primarily for Airbus A319/A320/A321 operations, while also compatible with wide-body aircraft lower lobes with doorsill heights up to 3500 mm (139”).
  • Equipped with a lifting platform enabling both loading and transport functions in a single unit.
  • Maximum travel speed of 25 km/h, supporting combined loading and long-distance transport operations.
  • Supports one-man operation for improved efficiency and reduced manpower requirements.
  • Integrated ASD (Aircraft Safe Docking) system for enhanced safety between loader and aircraft.
  • Built using TLD common components and modern technology for high reliability and simplified maintenance.
  • Aircraft-specific docking configurations for different lower lobe aircraft types.
  • Enhanced safety and monitoring systems including advanced ASD features.
  • Operator cabin ergonomics upgrades for improved comfort and visibility.
  • All-weather operation packages for reliable performance in extreme conditions.
  • Maintenance and diagnostic support systems for reduced downtime.
  • Fleet integration and tracking solutions for optimized cargo logistics.
